Dielectric high reflection coating,beamsplitter,filter and so on.

Product > Optical coating > Dielectric high reflection coating,beamsplitter,filter and so on.

Dielectric high reflection coating,beamsplitter,filter and so on.

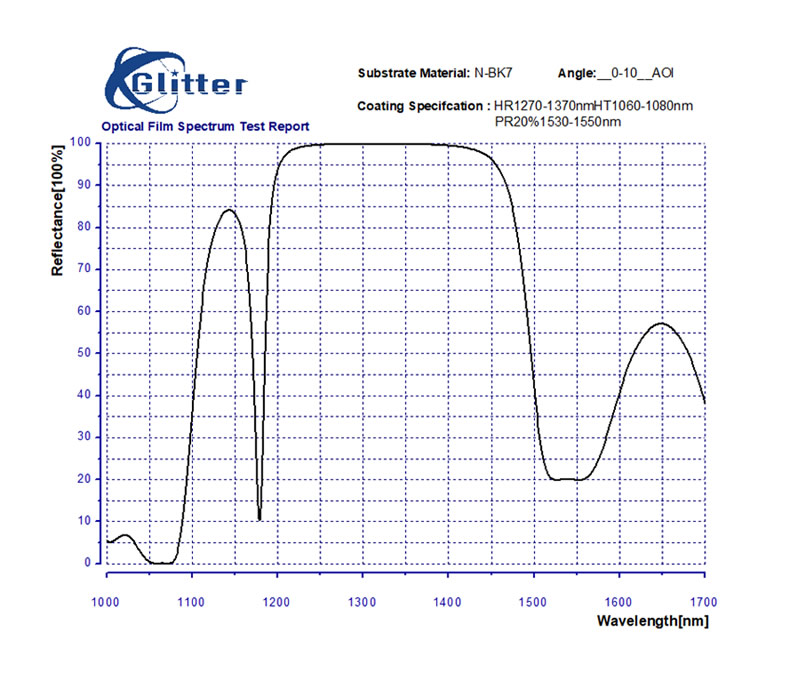

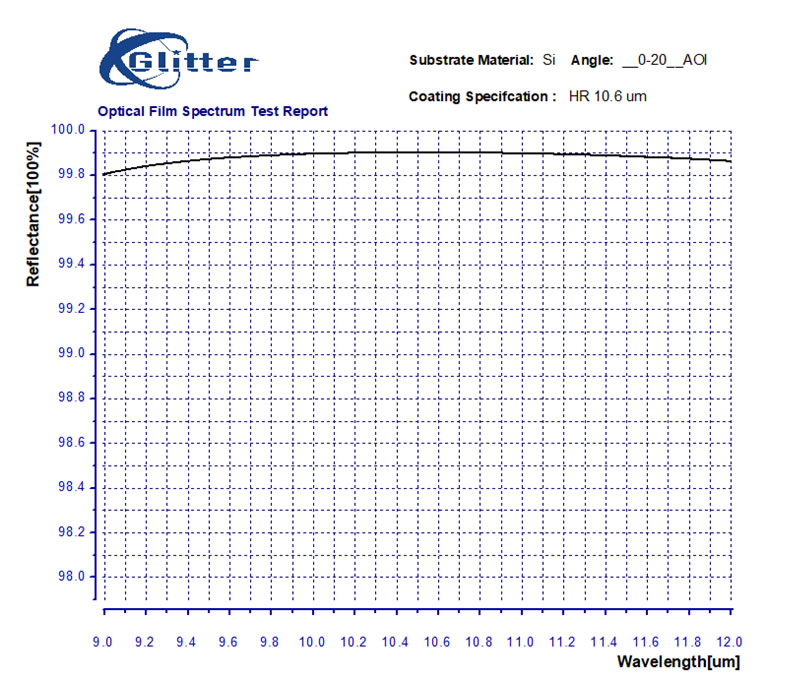

Single-wavelength HR coating, broadband HR coating, multi-wavelength HR coating. The customer can choose any material as the substrate according to the demand. The wavelength can be any band within 300-12000nm. The angle of incidence can be 0°to 60°.
The customer can choose any material as the substrate and customize the wavelength, the angle of incidence and T:R. It can be coated on the window or the surface of cemented prism which has polarization requirement.

　　High laser damage threshold HR coating.For example,HR1064nm 0-10°AOI R>99.8%,it can reach 0.2MW/cm2(CW Gaussian laser).This can be proved by the customer‘s practical application.

　　For the common HR coating,it can meet the standard of USA military specification including friction,reliability,salt spray,high and low temperature,high temperature and high humidity environmental test.

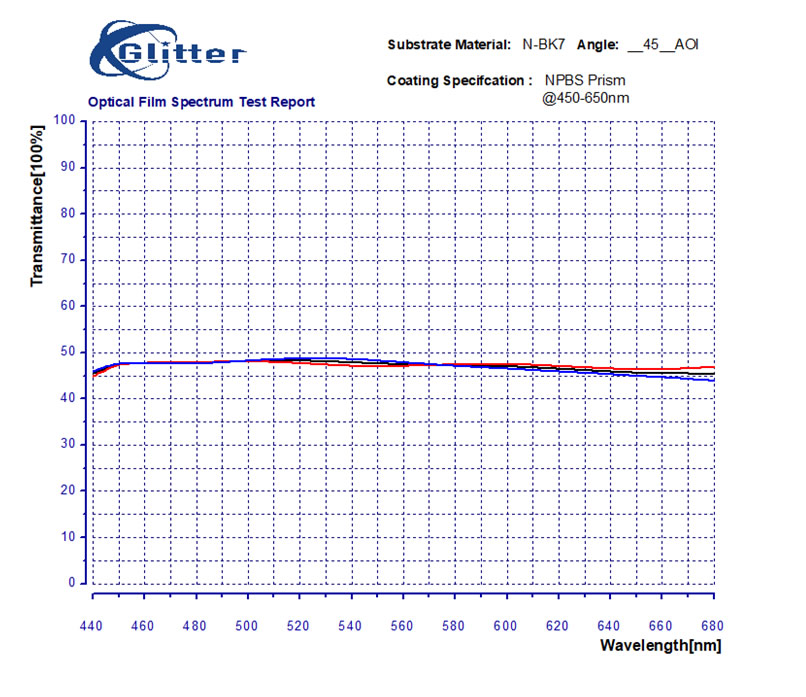

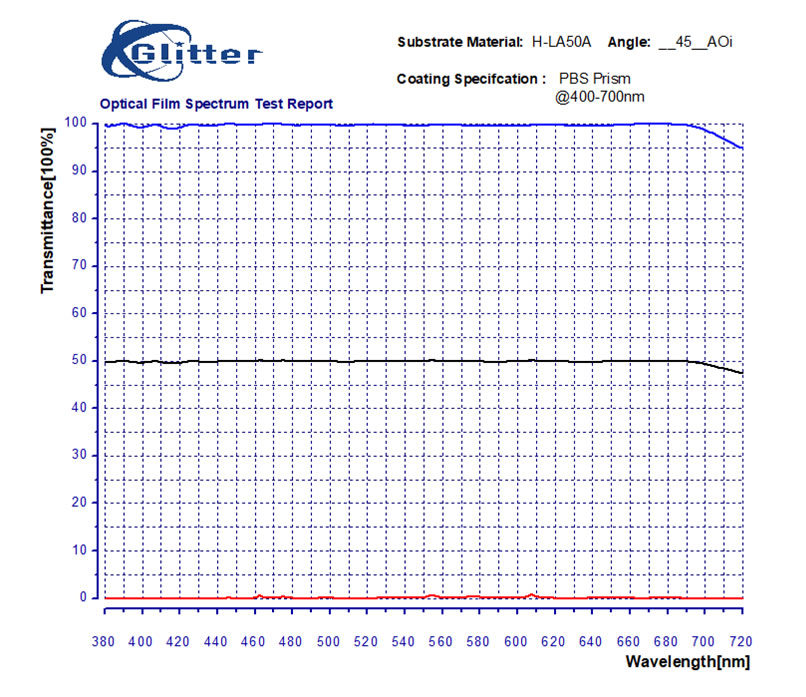

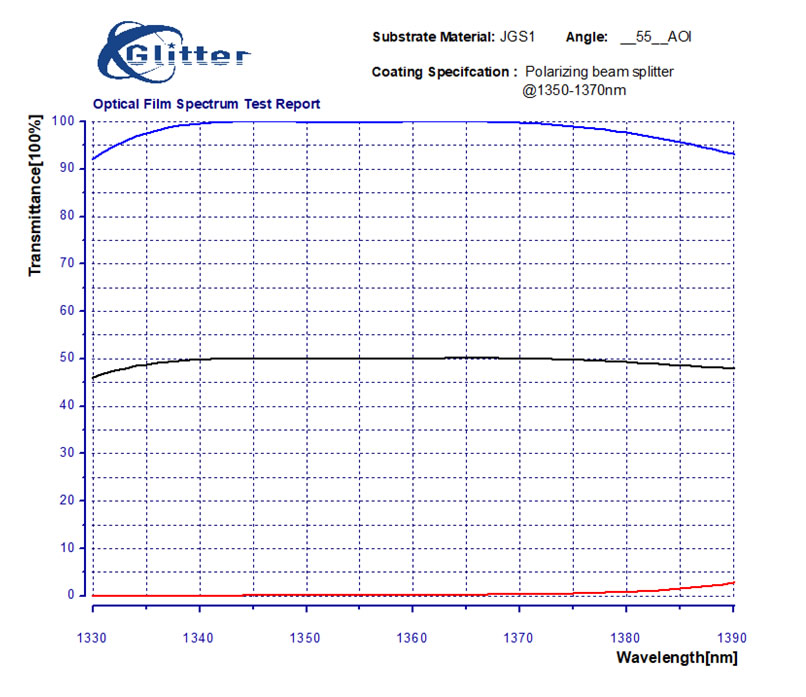

　　Polarizing beamsplitter coating and Non-polarizing beamsplitter coating.

　　The customer can choose any material as the substrate and customize the wavelength,the angle of incidence and T:R.It can be coated on the window or the surface of cemented prism which has polarization requirement.
